Crestron part number SAROS IC6VLPT-W-T-EACH+

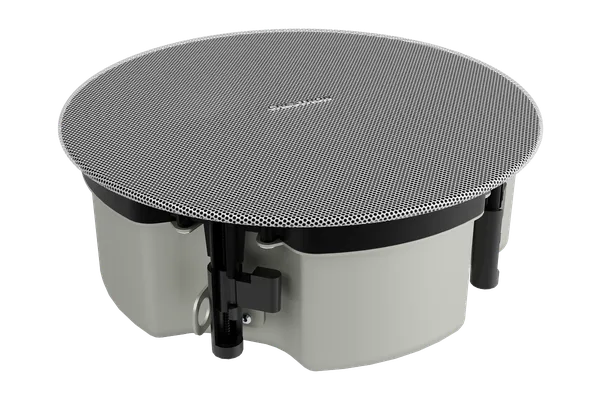

The Crestron SAROS IC6VLPT is a very low profile 2-way in-ceiling speaker for ceiling spaces as shallow as 4 in. (102 mm). It pairs a 6.5 in. polypropylene woofer with a horn-loaded titanium dome tweeter and has a built-in 60 W 70/100V multi-tap transformer, with 50 W programme handling at 8 Ω.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron SAROS IC6VLPT
Crestron offers the Saros low profile models as an alternative to full-sized Saros speakers where ceiling depth is tight. In the IC6VLPT, a 6.5 in. (165 mm) polypropylene woofer with a ring mode decoupled cloth surround and steel basket handles bass and midrange, while a horn-loaded 0.98 in. (25 mm) titanium dome tweeter gives wide dispersion and pattern control above the 2.5 kHz crossover.
Frequency response is 65 Hz to 20 kHz (±3 dB), with a range of 55 Hz to 20 kHz at ±10 dB, sensitivity of 88 dB at 1 W/1 m and maximum SPL of 108 dB. A recessed rotary switch on the baffle selects 3.75, 7.5, 15, 30 or 60 W at 70V, 7.5, 15, 30 or 60 W at 100V, or 8 Ω. Coverage is 85° conical for speech and 75° for music.
Speaker wire connects to a 4-pin 5 mm detachable terminal block with screw-down flanges and parallel pass-through, taking up to 12 AWG (3.31 mm²). The plenum-rated zinc-plated steel enclosure has a side-entry cable clamp, and four two-step swivelling dogs grip ceilings up to 2.4 in. (61 mm) thick, with a tile bridge included for drop-tile ceilings. The speaker is 10.63 in. (270 mm) across, 4.05 in. (103 mm) deep and weighs 8.3 lb (3.76 kg).
Key features
- Very low profile: needs only 4 in. mounting depth
- 6.5 in. (165 mm) polypropylene woofer
- Horn-loaded 0.98 in. (25 mm) titanium dome tweeter
- Built-in 60 W 70/100V multi-tap transformer, or 8 Ω operation
- 50 W programme power handling at 8 Ω
- 108 dB maximum SPL
- Zero-bezel frameless grille, paintable and magnetically held
- Two-step swivelling dogs with tile bridge included
SAROS IC6VLPT specifications
| Drivers | 6.5 in. (165 mm) polypropylene woofer; 0.98 in. (25 mm) titanium dome tweeter, horn loaded; 2.5 kHz crossover |
|---|---|
| Frequency response | 65 Hz to 20 kHz (±3 dB); range 55 Hz to 20 kHz (±10 dB) |
| Sensitivity and SPL | 88 dB @ 1 W/1 m; 108 dB maximum SPL |
| Power handling | 50 W programme (8 Ω) |
| Transformer taps | 3.75 W, 7.5 W, 15 W, 30 W, 60 W at 70V; 7.5 W, 15 W, 30 W, 60 W at 100V; 8 Ω setting |
| Coverage | 85° conical (speech); 75° conical (music) |
| Connections | 4-pin 5 mm detachable terminal block with screw-down flanges, parallel pass-through; 12 AWG (3.31 mm²) maximum |
| Construction and mounting | Plenum-rated zinc-plated steel enclosure with side-entry cable clamp; 4 two-step swivelling dogs; 2.4 in. (61 mm) maximum ceiling thickness; 4 in. minimum mounting depth; tile bridge included |
| Dimensions and weight | 10.63 in. (270 mm) diameter without dogs; 4.05 in. (103 mm) deep; 8.3 lb (3.76 kg) |
| Environment | -2° to 120°F (-19° to 49°C); 5% to 95% RH non-condensing |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| SAROS IC6VLPT-W-T-EACH+ | White textured, single | On request |
Where the SAROS IC6VLPT is used
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron SAROS IC6VLPT
What is the Crestron SAROS IC6VLPT?
It is a Saros very low profile 2-way in-ceiling speaker for ceiling spaces as shallow as 4 in. (102 mm). It uses a 6.5 in. polypropylene woofer and a horn-loaded titanium dome tweeter, with a built-in 60 W 70/100V multi-tap transformer and 50 W programme handling at 8 Ω.
How does the SAROS IC6VLPT compare with the SAROS IC6ULPT?
The IC6ULPT is the shallower model, needing 2.4 in. of mounting depth, with a 4 in. woofer, a 30 W transformer and IPX5 splash resistance. The IC6VLPT needs 4 in. but has a 6.5 in. woofer, a horn-loaded tweeter, a 60 W transformer, 50 W programme handling and 108 dB maximum SPL.
Which transformer taps are available?
At 70V the taps are 3.75, 7.5, 15, 30 and 60 W, and at 100V they are 7.5, 15, 30 and 60 W. There is also an 8 Ω setting. The tap is chosen with a recessed, screwdriver-adjustable rotary switch on the baffle.
How does the SAROS IC6VLPT mount?
It is a flush ceiling mount using four integral two-step swivelling dogs, for ceilings up to 2.4 in. (61 mm) thick, with a minimum mounting depth of 4 in. A tile bridge is included for drop-tile ceilings, and the grille is a paintable, magnetically held, zero-bezel frameless design with a safety tether.
Is it sold singly?
Each SAROS IC6VLPT-W-T-EACH+ is one speaker in a white textured finish, but Crestron states it must be ordered in multiples of 2. So even a single replacement needs an order for an even quantity, such as two.
How much is the Crestron SAROS IC6VLPT?
Crestron asks its dealers to give the price of the SAROS IC6VLPT directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the SAROS IC6VLPT?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the SAROS IC6VLPT on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the SAROS IC6VLPT come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the SAROS IC6VLPT develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the SAROS IC6VLPT in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the SAROS IC6VLPT without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
