Crestron REFERENCE OD4.1-4-S10 4.1 Landscape Speaker Kit

Crestron part number REFERENCE OD4.1-4-S10-BRZ-T KIT

The Crestron REFERENCE OD4.1-4-S10 kit is a 4.1 outdoor landscape audio system from the Reference range, made by Origin Acoustics. It combines four weatherproof 2-way satellite speakers with a 10 in. in-ground subwoofer, in a bronze textured finish, with a quoted coverage of 1500 sq ft.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

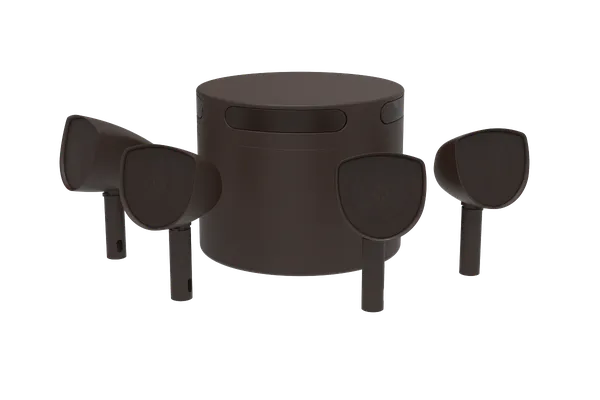

Crestron REFERENCE OD4.1-4-S10 Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

About the Crestron REFERENCE OD4.1-4-S10

Each of the four satellites has a 4 in. (102 mm) polypropylene woofer and a 0.75 in. (19 mm) PEI mylar tweeter in a coaxial layout, for wide dispersion over a larger listening area. The subwoofer uses a 10 in. (254 mm) polypropylene woofer in a rugged poly composite PVC enclosure, designed for direct burial in soil with good drainage. As a kit, the frequency response is 35 Hz to 20 kHz (±3 dB).

The satellites cover 90 Hz to 20 kHz (±10 dB) and the subwoofer 35 Hz to 150 Hz (±10 dB). The kit is rated at 8 Ohms nominal, with 120 W programme and 240 W peak power handling and 87 dB sensitivity at 1 W/1 m. Each satellite comes with 32.5 in. (826 mm) of direct-burial 2-conductor speaker wire attached, and the kit also has a 39.5 in. (1003 mm) attached direct-burial lead.

Satellite enclosures are colour-moulded composite with UV treated HDPE baffles and steel grilles, designed for landscape and wall mount applications, with ground stake and tree mounting among the options. Each satellite is 18.02 in. (458 mm) high and weighs 3 lb (1.36 kg). The subwoofer is 12.84 in. (326 mm) high and 15.75 in. (400 mm) wide, and weighs 23.5 lb (10.65 kg). The SPKA-STAKE-OD-18 and SPKA-SMK/TREEMK-REFERENCE-OD4 are not included.

Key features

4.1 kit: four weatherproof 2-way satellites and one in-ground subwoofer
Satellites with 4 in. (102 mm) polypropylene woofer and 0.75 in. (19 mm) PEI mylar tweeter
Subwoofer with 10 in. (254 mm) polypropylene woofer
Kit frequency response of 35 Hz to 20 kHz (±3 dB)
IPX6 waterproof rating
Coaxial satellites for wide dispersion
Subwoofer enclosure in rugged poly composite PVC for direct burial
Quoted coverage of 1500 sq ft

REFERENCE OD4.1-4-S10 specifications

Kit contents	4 x 2-way satellite speakers; 1 x in-ground subwoofer
Satellite drivers	4 in. (102 mm) polypropylene woofer; 0.75 in. (19 mm) PEI mylar tweeter; coaxial
Subwoofer driver	10 in. (254 mm) polypropylene woofer
Frequency response	Kit 35 Hz to 20 kHz (±3 dB); satellite range 90 Hz to 20 kHz (±10 dB); subwoofer range 35 Hz to 150 Hz (±10 dB)
Impedance and power	Kit 8 Ohms nominal; 120 W programme, 240 W peak (8 Ohms); 87 dB @ 1 W/1 m
Coverage	1500 sq ft
Connections	32.5 in. (826 mm) attached direct-burial 2-conductor speaker wire per satellite; one 39.5 in. (1003 mm) attached direct-burial lead; 12 AWG (4 mm²)
Weather rating	IPX6 waterproof; 4° to 176°F (-15.5° to 80°C); 10% to 95% RH non-condensing
Construction	Satellites: colour-moulded composite enclosure, UV treated HDPE baffle, electroplated and powder coated steel grille. Subwoofer: rugged poly composite PVC, for direct burial in soil with good drainage
Dimensions and weight	Satellite 18.02 in. (458 mm) H x 5.76 in. (147 mm) W x 7.05 in. (180 mm) D, 3 lb (1.36 kg); subwoofer 12.84 in. (326 mm) H x 15.75 in. (400 mm) W, 23.5 lb (10.65 kg)

Part numbers on this page

Part number	Version	Price	Add
REFERENCE OD4.1-4-S10-BRZ-T KIT	Bronze textured kit	On request

Where the REFERENCE OD4.1-4-S10 is used

Gardens and landscaped grounds
Outdoor areas that need low frequencies from a buried subwoofer
Outdoor spaces sized to the kit's 1500 sq ft coverage
Properties where speakers mount on ground stakes, trees or walls

Works with the REFERENCE OD4.1-4-S10

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron REFERENCE OD4.1-4-S10

What is in the REFERENCE OD4.1-4-S10 kit?

The REFERENCE OD4.1-4-S10-BRZ-T KIT contains four weatherproof 2-way outdoor satellite speakers and one in-ground subwoofer. Each satellite has a 4 in. polypropylene woofer and a 0.75 in. PEI mylar tweeter, and the subwoofer uses a 10 in. polypropylene woofer. The kit is listed in a bronze textured finish.

How is the subwoofer placed?

The subwoofer is an in-ground design. Its rugged poly composite PVC enclosure is made for direct burial in soil with good drainage. It measures 12.84 in. (326 mm) high and 15.75 in. (400 mm) wide, weighs 23.5 lb (10.65 kg) and covers 35 Hz to 150 Hz (±10 dB).

How much area does the REFERENCE OD4.1-4-S10 cover?

Crestron quotes a coverage of 1500 sq ft for the kit. The coaxial satellites are designed for wide dispersion over a larger listening area, and the complete system has a frequency response of 35 Hz to 20 kHz (±3 dB).

Are mounting accessories included with the kit?

No. Crestron notes that the SPKA-STAKE-OD-18 and SPKA-SMK/TREEMK-REFERENCE-OD4 are not included. The satellites are designed for landscape and wall mount applications, with ground stake and tree mounting among the listed options, so plan the mounting accessories for each position.

What are the power and impedance ratings?

The kit is rated at 8 Ohms nominal. Power handling is 120 W programme and 240 W peak at 8 Ohms, and sensitivity is 87 dB at 1 W/1 m. The kit carries an IPX6 waterproof rating and is specified for 4° to 176°F (-15.5° to 80°C).

How much is the Crestron REFERENCE OD4.1-4-S10?

Crestron asks its dealers to give the price of the REFERENCE OD4.1-4-S10 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the REFERENCE OD4.1-4-S10?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the REFERENCE OD4.1-4-S10 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the REFERENCE OD4.1-4-S10 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the REFERENCE OD4.1-4-S10 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the REFERENCE OD4.1-4-S10 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the REFERENCE OD4.1-4-S10 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
