Crestron HR-150 50-Button infiNET EX Handheld Remote

Crestron part number HR-150-B

The Crestron HR-150 is a rugged 50-button handheld remote that communicates with a Crestron control system over infiNET EX two-way RF. It suits home cinemas, bedrooms, hotel rooms and boardrooms, with backlit buttons for AV control and eight assignable positions for sources, rooms, lighting or shades.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

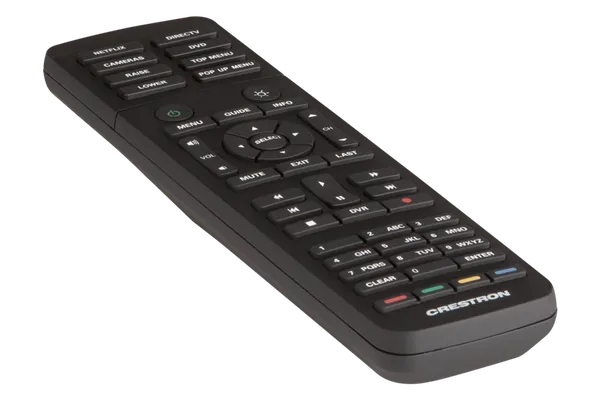

Crestron HR-150 Handheld Remote, 50 Button, Black

About the Crestron HR-150

The HR-150 has 42 fixed buttons for everyday AV use: power, volume and channel rockers, a 5-way thumbpad, eight transport buttons, MENU, GUIDE, INFO, MUTE, EXIT, LAST and DVR, four colour-coded buttons and a 12-key alphanumeric keypad with multitap entry. Each button is fully programmable and backlit in white, and a backlight button lights them for 10 seconds. The labels on these fixed buttons cannot be changed.

At the top are eight positions for user-assignable buttons, which can be fitted with 0, 2, 4, 6 or 8 buttons. The remote comes with 100 prelabelled button caps for tasks such as source or room selection, lighting and shade control, and backlit engravable HR-BTN-B_ENGRAVED caps are sold separately. It talks two-way over infiNET EX at 2.4 GHz through an infiNET EX wireless gateway, with a typical range of 23 m (75 ft).

It runs on four AAA alkaline batteries, and a Micro-B USB console port behind the battery cover is for installer use only. The ruggedised plastic body has a fingerprint-resistant silk finish and measures 27 mm high, 55 mm wide and 196 mm long, weighing 141 g without batteries. When adding or replacing one, the site needs an infiNET EX wireless gateway, and the buttons are programmed as part of the Crestron control system.

Key features

50 backlit, soft-feel buttons, each fully programmable
Up to 8 user-assignable buttons, with 100 prelabelled caps included
Backlit engravable caps available separately (HR-BTN-B_ENGRAVED)
infiNET EX two-way RF at 2.4 GHz, typical range 23 m
5-way thumbpad, transport, DVR and colour-coded buttons
Multitap alphanumeric keypad
Rugged, easy-grip body with a fingerprint-resistant silk finish
Runs on four AAA batteries

HR-150 specifications

Buttons	50 in total: 42 fixed and up to 8 user-assignable; white LED backlighting
User-assignable	0, 2, 4, 6 or 8 buttons; 100 prelabelled caps included; HR-BTN-B_ENGRAVED engravable caps sold separately
Navigation	5-way thumbpad with SELECT; volume and channel rockers; 8 transport buttons
Wireless	infiNET EX 2-way RF, 2.4 GHz (2400 to 2483.5 MHz), IEEE 802.15.4
Range	Typically 23 m (75 ft) to the gateway or nearest expander, depending on site conditions
Gateway	Requires an infiNET EX wireless gateway
Batteries	Four 1.5 V AAA alkaline
Console port	Micro-B USB behind the battery cover, for installer use
Dimensions	Height 27 mm (1.04 in), width 55 mm (2.14 in), depth 196 mm (7.71 in)
Weight	141 g (5.0 oz) without batteries

Part numbers on this page

Part number	Version	Price	Add
HR-150-B	Black	On request

Where the HR-150 is used

Home cinemas and media rooms
Bedrooms and living spaces with Crestron control
Hotel rooms
Boardrooms
Replacing a lost or damaged HR-150

Works with the HR-150

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron HR-150

What is the Crestron HR-150?

The HR-150-B is a black 50-button handheld remote for Crestron systems. It uses infiNET EX two-way RF to reach the control system through an infiNET EX wireless gateway, and each button is programmable, so it can handle TV and media control, source and room selection, lighting and shades.

Which buttons on the HR-150 can be customised?

Only the eight positions at the top of the remote. They can hold 0, 2, 4, 6 or 8 buttons, using the 100 prelabelled caps supplied or backlit engravable HR-BTN-B_ENGRAVED caps sold separately. The labels on the other 42 buttons are fixed, although all of the buttons can be programmed.

Does the HR-150 need a gateway?

Yes. It requires an infiNET EX wireless gateway connected to the Crestron control system. It communicates two-way at 2.4 GHz (IEEE 802.15.4), with a typical range of 23 m (75 ft) to the gateway or nearest expander, depending on conditions at the site.

What batteries does the HR-150 use?

It takes four disposable 1.5 V AAA alkaline batteries. The Micro-B USB port behind the battery compartment cover is a console port for installer use only. A backlight button lights all the buttons for 10 seconds when needed.

How big is it?

It measures 27 mm high, 55 mm wide and 196 mm long, and weighs 141 g without batteries. The ruggedised plastic body has an easy-grip shape and a fingerprint-resistant silk finish, and it is designed for one-handed use. It is rated for 0 to 40 °C.

How much is the Crestron HR-150?

Crestron asks its dealers to give the price of the HR-150 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the HR-150?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HR-150 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the HR-150 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HR-150 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the HR-150 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the HR-150 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.

Crestron HR-150 50-Button infiNET EX Handheld Remote, Black
