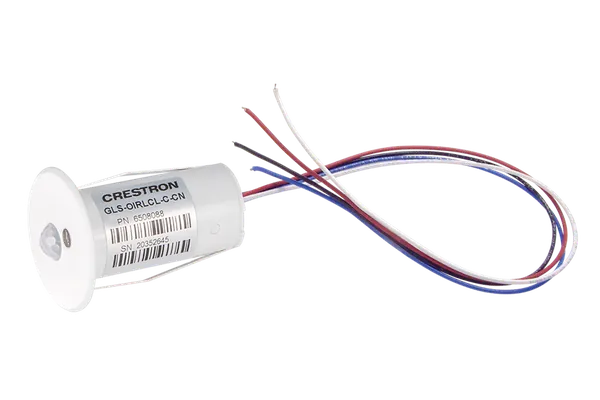

Crestron GLS-OIRLCL-C-CN PIR Occupancy and Daylight Sensor, Cresnet

It is a flush ceiling mount sensor that works both as a passive infrared occupancy or vacancy sensor and as a closed-loop daylight sensor. It connects to a Crestron system over Cresnet and enables automation of lighting, shading, HVAC and AV equipment based on occupancy, vacancy and ambient light.

It covers up to 450 sq ft (42 sq m) with a rectangular pattern measuring 5.66 x 7.42 m (18.57 x 24.34 ft) at a ceiling height of 2.5 m (8.2 ft). The maximum ceiling height is 5 m (16.4 ft), and detection uses 64 PIR zones.

A built-in closed-loop photocell monitors the ambient light level from both natural and artificial sources, from 0 to 1000 lux, with a 360° hemispherical field of view. This supports daylight harvesting, with the Crestron system automating lighting and shading based on the measured light level.

It mounts flush in drywall or a ceiling tile, in a 1 in. (26 mm) round hole, and integrated compression clips hold it in place. The white housing is 39 mm in diameter and protrudes just 5 mm from the ceiling surface, giving a nearly hidden appearance.

With Walk-Through mode enabled, if a room is occupied for 90 seconds or less, the lights turn off 60 seconds after it is vacated. Grace occupancy applies in vacancy only mode: for 15 seconds after the lights turn off, waving a hand triggers the sensor and turns them back on.

Crestron asks its dealers to give the price of the GLS-OIRLCL-C-CN directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the GLS-OIRLCL-C-CN on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the GLS-OIRLCL-C-CN develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
