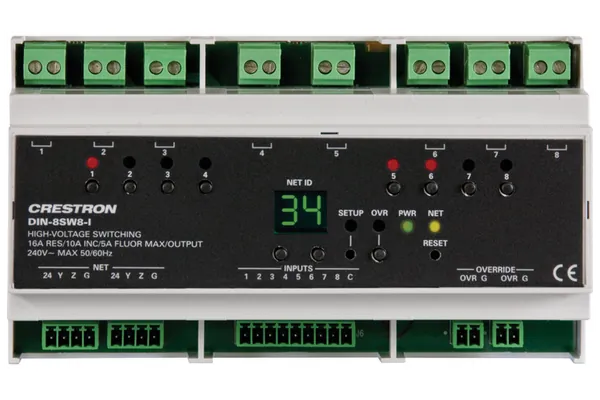

Crestron DIN-8SW8 8 Channel High-Voltage Switch with Digital Inputs

The DIN-8SW8, sold on this page as part number DIN-8SW8-I, is a DIN rail high-voltage switch with eight switched channels for non-dimmable lighting and fans. It also has eight isolated digital inputs for momentary switches, and it works with a Crestron control system over Cresnet.

Yes. By default, a momentary voltage applied to an input toggles the associated relay on or off, so standard momentary switches can control the channels with or without a control system. A connected Crestron control system can override this and use them as eight general-purpose inputs.

A single model supports both 120 V and 220 to 240 V applications at 50/60 Hz. Crestron lists support for lighting and motor loads in this range, and the module is designed for switching non-dimmable lighting and fans rather than dimming.

It allows an external contact closure to momentarily override the control system programme and set each channel output to its override preset level. Override levels can be adjusted and saved locally from the front panel, or remotely through software.

It snaps onto a standard DIN rail in a wall mount enclosure and is 9M wide. Wiring connections use screw terminals along the bottom, accessible from the front, and a pair of Cresnet ports allows several DIN Rail Series modules to be daisy-chained.

Crestron asks its dealers to give the price of the DIN-8SW8 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-8SW8 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-8SW8 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
