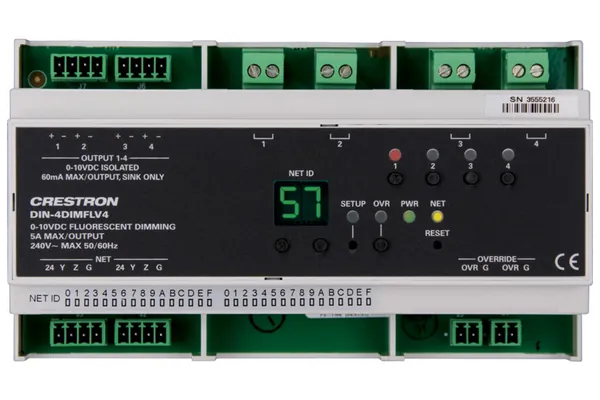

Crestron DIN-4DIMFLV4 4 Channel 0-10V Dimmer, 4 Feeds, DIN Rail Mount

It is a 4 channel DIN rail lighting control module with four feeds, designed to dim 0-10 V drivers and ballasts. It supports 120 V and 220 to 240 V applications, can also switch lighting and exhaust fans, and communicates with a Crestron control system over Cresnet.

Yes. As well as providing 0-10 V dimming control, it can be used to switch non-dimmable lighting loads of up to 5 A and motors of up to 1/2 HP. Crestron lists switching of lighting and exhaust fans among its features.

It communicates over the Cresnet control network with Crestron control systems such as the DIN-AP2 or DIN-AP3 Automation Processors, which provide its programmable functionality. Two Cresnet ports let several DIN Rail Series automation modules be daisy-chained.

It lets an external contact closure momentarily override the control system programme and set each channel output to its override preset level. The override levels can be adjusted and saved locally from the front panel, or remotely through software.

It snaps onto a standard DIN rail for installation in a wall mount enclosure and is 9M wide. Wiring connections use screw terminals along the top and bottom, accessible from the front, and all setup controls and indicators are on the centre front panel.

Crestron asks its dealers to give the price of the DIN-4DIMFLV4 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-4DIMFLV4 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-4DIMFLV4 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
