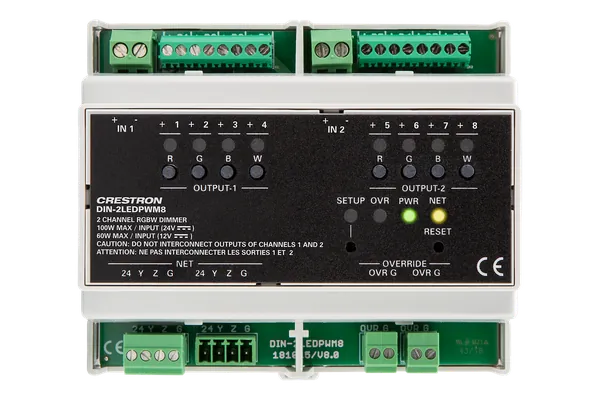

Crestron DIN-2LEDPWM8 2 Channel RGBW LED Dimmer, DIN Rail Mount

It is a two channel RGBW LED dimmer for DIN rail mounting. It dims RGBW and single colour LEDs and LED strips using pulse width modulation (PWM) for flicker-free performance throughout the dimming range, and it connects to a Crestron control system through a Cresnet port.

It has two outputs. Each output controls one RGBW LED or LED strip, or four individual LEDs or LED strips, so the module can handle two RGBW strips or up to eight individual LEDs or strips, within the 5 A limit per output.

Each output is powered separately through its IN terminals from a 12 to 24 VDC, 5 A maximum Class 2 power supply, and that power passes through to the LEDs. Maximum output is 100 W at 24 VDC or 60 W at 12 VDC. The module itself takes 24 VDC through its Cresnet NET port.

Yes. Dimming runs from 0 to 100% with a choice of linear or logarithmic dimming curve. The PWM frequency can be set from 120 to 1200 Hz, with 301 Hz as the default. Setup is done from the front panel or through software.

It occupies 6 DIN module spaces (108 mm) on a 35 mm DIN EN 60715 rail and uses the DIN 43880 form factor for enclosures with a 45 mm front panel cutout. It measures 94 mm high and 59 mm deep, in a light grey UL94 V-0 polycarbonate housing.

Crestron asks its dealers to give the price of the DIN-2LEDPWM8 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-2LEDPWM8 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-2LEDPWM8 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
