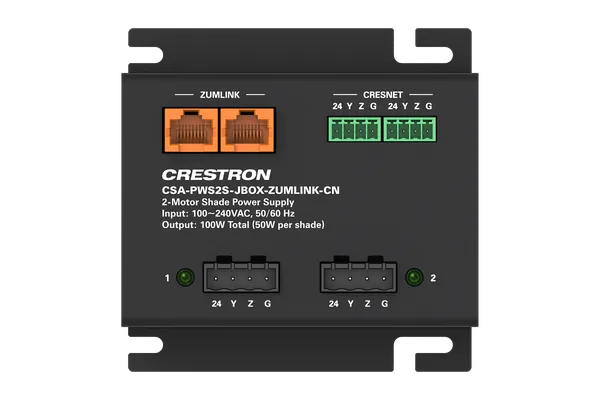

Crestron CSA-PWS2S-JBOX-ZUMLINK-CN Two-Motor J-Box Power Supply

It is a two-motor, junction box mounted power supply for Crestron shading. It powers up to two QMT series roller shade or drapery system motors at 24V, is plenum rated, and passes power through to two Cresnet or two Zūm Link connections for Crestron shade and Zūm lighting devices.

It provides 100 W (4.2 A) at 24 VDC in total, with 50 W (2.1 A) per output, both as limited power source (LPS) outputs. When the outputs power additional Cresnet devices, the continuous total is 75 W at 24 VDC. Input is 100-240VAC, 50-60 Hz.

No. Each output can be used for either a shade or additional Cresnet devices, but Crestron says not to combine shades and Cresnet devices on a single output. Each shade or device must have its own dedicated output, and each motor is wired as a home run to the power supply.

It is designed to be hardwired into a standard 4 in x 4 in junction box and mounts using screws on the back of the enclosure. It meets UL 2043 requirements for use in an environmental air-handling (plenum) space, is for indoor use only, and its anodised black metal housing is designed to blend with open ceilings.

The two RJ-45 Zūm Link ports allow in-room daisy-chaining of Zūm Link devices and pass through data from either the Cresnet ports or the Zūm Link ports. Crestron lists them for commercial lighting applications that use custom programming.

Crestron asks its dealers to give the price of the CSA-PWS2S-JBOX-ZUMLINK-CN directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CSA-PWS2S-JBOX-ZUMLINK-CN on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CSA-PWS2S-JBOX-ZUMLINK-CN develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
