Crestron CEN-ODT-C-POE Dual-Technology Occupancy Sensor

Crestron part number CEN-ODT-C-POE

The Crestron CEN-ODT-C-POE is a low-profile, ceiling-mounted occupancy sensor that combines passive infrared (PIR) and ultrasonic motion detection. Powered and connected by PoE, it covers areas up to 2,000 sq ft with a 360 degree pattern, suiting large spaces such as auditoriums, warehouses and building lobbies.

€372 plus VAT €457.56 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

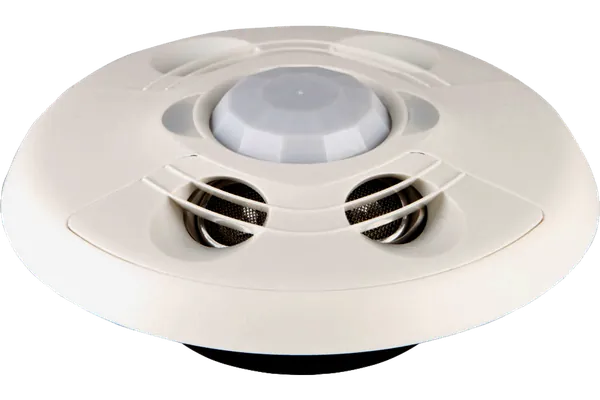

Crestron CEN-ODT-C-POE Dual-Technology Occupancy Sensor, PoE, 2,000 Sq Ft

About the Crestron CEN-ODT-C-POE

Two detection technologies work together: passive infrared (PIR) and ultrasonic at 40 kHz, with a 360 degree coverage pattern across up to 2,000 sq ft. Separate LEDs light for PIR detection (red) and ultrasonic detection (green). Crestron presents the sensor as a way to reduce energy consumption and to add to what lighting, AV and building management systems can do.

A single RJ-45 10/100 Ethernet port carries both data and power: the sensor is an IEEE 802.3af PoE powered device using 4 W at most. It integrates with the Crestron XiO Cloud service and offers enterprise-grade security. A NET LED shows when there is no LAN connection to the host, and a blue LED lights when the host sends an identify command, which is acknowledged with the SETUP button behind the front cover.

The white plastic housing mounts to a 4 inch (102 mm) octagon box or into a 3-1/2 inch (88 mm) hole cut with the template provided, and mounting screws are included. It is 122 mm in diameter and 81 mm deep overall, but projects 25 mm from the ceiling once fitted. It weighs 240 g and is covered under the Crestron standard limited warranty.

Key features

Dual-technology detection: PIR and ultrasonic (40 kHz)
Covers up to 2,000 sq ft with a 360 degree pattern
Low-profile ceiling mount, projecting 25 mm when fitted
Single PoE connection (IEEE 802.3af, 4 W max)
Crestron XiO Cloud service integration
Enterprise-grade security
Separate LEDs for PIR and ultrasonic detection
Designed to enhance AV, lighting and building management systems

CEN-ODT-C-POE specifications

Detection	Passive infrared (PIR) and ultrasonic (40 kHz)
Coverage	Up to 2,000 sq ft; 360 degree pattern
Network	RJ-45, 10/100 Ethernet
Power	PoE, IEEE 802.3af powered device; 4 W maximum
Indicators	PIR (red), ultrasonic (green), NET (yellow), power/firmware (yellow/green), setup (blue)
Mounting	4 in (102 mm) octagon box or 3-1/2 in (88 mm) hole using the supplied template; mounting screws included
Dimensions	122 mm (4.80 in) diameter; 81 mm (3.185 in) deep overall; projects 25 mm (0.97 in) from the surface
Weight	240 g (0.53 lb)
Housing	White plastic
Operating environment	0 to 40 °C (32 to 104 °F); 10% to 90% RH non-condensing

Part numbers on this page

Part number	Version	Price	Add
CEN-ODT-C-POE	Standard	€372 plus VAT €457.56 inc VAT

Where the CEN-ODT-C-POE is used

Auditoriums and other large spaces up to 2,000 sq ft
Warehouses
Building lobbies
Occupancy based lighting control to reduce energy use
AV and building management systems that use occupancy data

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron CEN-ODT-C-POE

What is the Crestron CEN-ODT-C-POE?

It is a low-profile ceiling occupancy sensor that uses two detection technologies, passive infrared (PIR) and ultrasonic, to sense motion. It covers areas up to 2,000 sq ft with a 360 degree pattern and connects to the network and receives power over a single PoE Ethernet cable.

What does dual-technology mean on the CEN-ODT-C-POE?

The sensor combines passive infrared (PIR) motion detection with ultrasonic detection at 40 kHz. Crestron describes the result as accurate and reliable motion sensing, and the sensor has separate LEDs that light for PIR detection (red) and ultrasonic detection (green).

How is the CEN-ODT-C-POE powered?

It is an IEEE 802.3af PoE powered device with a maximum draw of 4 W, connected through a single RJ-45 10/100 Ethernet port. The same connection carries its network communication, and it integrates with the Crestron XiO Cloud service.

How is the sensor mounted?

It mounts on the ceiling, either to a 4 inch (102 mm) octagon box or into a 3-1/2 inch (88 mm) diameter hole made with the cutout template provided. Mounting screws are included. The sensor is 122 mm in diameter and projects 25 mm from the surface once fitted.

What size of space does the CEN-ODT-C-POE cover?

Crestron rates it for areas up to 2,000 sq ft with a 360 degree coverage pattern. That makes it suited to large spaces such as auditoriums, warehouses and building lobbies, where it can help reduce energy consumption.

How much is the Crestron CEN-ODT-C-POE?

Crestron's advertised price for the CEN-ODT-C-POE in Ireland is €372 plus VAT, which is €457.56 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the CEN-ODT-C-POE?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CEN-ODT-C-POE on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the CEN-ODT-C-POE come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CEN-ODT-C-POE develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the CEN-ODT-C-POE in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the CEN-ODT-C-POE without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
