Crestron part number CCC-110-Z

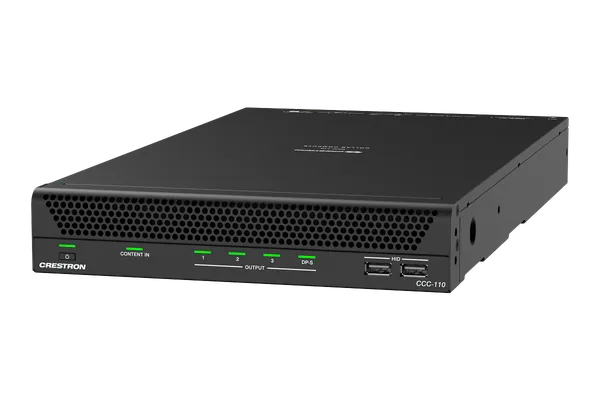

The Crestron CCC-110-Z is a Collab Compute unit for Zoom Rooms software, powered by an Intel Core Ultra 5 processor. It runs the room's video conferencing and supports up to three displays, four USB video and audio devices and three TS(W)-1080-UC touch screens, sold separately.
€2,242 plus VAT €2,757.66 including VAT at 23%
Crestron's advertised price. Delivery, installation and programming are quoted separately.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron CCC-110-Z
The CCC-110-Z pairs an Intel Core Ultra 5 125H processor and Intel ARC graphics with 32 GB of dual channel DDR5 memory and 256 GB of storage, on Windows 11 Enterprise IoT Edition. Crestron presents it as an AI-ready and scalable platform for intelligent meeting spaces. In Zoom Rooms it supports up to three displays; the outputs are three HDMI 2.0b connectors and a USB Type-C port with DisplayPort Alt Mode.
A TS(W)-1080-UC touch screen connects to the dedicated rear PoE+ port (IEEE 802.3at Type 2, 30 W) for the native Zoom Rooms interface. USB cameras, microphones and DSPs use the four rear USB 3 ports at 10 Gbps. Wired content arrives through the HDMI input or the DM input from a DM Essentials transmitter, and users can also present and call from their own device's conferencing platform.
If your rooms run Microsoft Teams Rooms instead, the matching model is the CCC-110-T, and the CCC-120-Z is the Zoom Rooms version with an Intel Core Ultra 7. The CCC-110-Z has two 100/1000 Mbps LAN ports, Wi-Fi 7 and Bluetooth 5.4, can be managed through the XiO Cloud service (available separately) and can optionally integrate with a Crestron control system. It draws 126 W typically from a 100 to 240 VAC supply.
Key features
- Intel Core Ultra 5 125H with Intel ARC graphics, 32 GB DDR5 and 256 GB storage
- Runs Zoom Rooms software on Windows 11 Enterprise IoT Edition
- Supports up to three displays
- Dedicated PoE+ port for a TS(W)-1080-UC touch screen (sold separately)
- Four rear USB 3 ports at 10 Gbps for USB cameras, microphones and DSPs
- HDMI and DM content inputs, plus BYOD presenting and calling
- Wi-Fi 7, Bluetooth 5.4 and two 100/1000 Mbps LAN ports
- XiO Cloud provisioning and alerts (service available separately)
CCC-110-Z specifications
| Processor | Intel Core Ultra 5 125H with Intel ARC graphics |
|---|---|
| Memory and storage | 32 GB dual channel DDR5 SODIMM; 256 GB storage |
| Operating system | Windows 11 Enterprise IoT Edition |
| Displays | Up to three; outputs are 3 x HDMI 2.0b and 1 x USB Type-C 3.2 Gen 2 with DisplayPort Alt Mode |
| Inputs | 1 x HDMI 2.0b content input; 1 x DM input (RJ-45) for a DM Essentials transmitter; HDCP 2.3 |
| USB | 4 x USB 3 Type-A 10 Gbps (rear); 2 x USB 2 Type-A (front) |
| Network | 2 x 100/1000 Mbps LAN; 1 x PoE+ PSE port (IEEE 802.3at Type 2, 30 W); Wi-Fi 7 (Intel BE200); Bluetooth 5.4 |
| Power | 100 to 240 VAC; 105 W idle, 126 W typical, 162 W maximum |
| Mounting | Freestanding, or table or wall with the CCCA-CMK-110/120 bracket (sold separately) |
| Dimensions | Height 44 mm (1.72 in), width 220 mm (8.67 in), depth 389 mm (15.32 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| CCC-110-Z | Zoom Rooms | €2,242 plus VAT €2,757.66 inc VAT |
Where the CCC-110-Z is used
Works with the CCC-110-Z
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron CCC-110-Z
What is the Crestron CCC-110-Z?
The CCC-110-Z is a Crestron Collab Compute unit made for Zoom Rooms software. It uses an Intel Core Ultra 5 processor and supports up to three displays, four USB video and audio devices and up to three TS(W)-1080-UC touch screens, which are sold separately.
How does the CCC-110-Z differ from the CCC-120-Z?
Both are Collab Compute units for Zoom Rooms. The CCC-110-Z uses an Intel Core Ultra 5 processor, while the CCC-120-Z steps up to an Intel Core Ultra 7. If your rooms use Microsoft Teams Rooms rather than Zoom, the equivalent Core Ultra 5 model is the CCC-110-T.
Which touch screen works with the CCC-110-Z?
Crestron lists the TS(W)-1080-UC Series touch screen, sold separately, which connects to the dedicated PoE+ port on the rear of the unit and presents the native Zoom Rooms interface. The PoE+ port is IEEE 802.3at Type 2 compliant at 30 W, and up to three of these touch screens are supported.
How is the CCC-110-Z powered?
It takes a 100 to 240 VAC mains supply and draws 105 W at idle, 126 W typically and 162 W at maximum. The black metal chassis is fan cooled and vented at the front and rear, with a backlit push button for switching the unit on and off.
What are the dimensions and mounting options?
The unit is 44 mm (1.72 in) high, 220 mm (8.67 in) wide and 389 mm (15.32 in) deep. It can be used freestanding, or mounted on a tabletop or wall using the CCCA-CMK-110/120 toolless mounting bracket, sold separately.
How much is the Crestron CCC-110-Z?
Crestron's advertised price for the CCC-110-Z in Ireland is €2,242 plus VAT, which is €2,757.66 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.
Can 1Install supply, install and programme the CCC-110-Z?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CCC-110-Z on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the CCC-110-Z come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CCC-110-Z develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the CCC-110-Z in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the CCC-110-Z without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
