Crestron part number IV-CAM-I12D-B

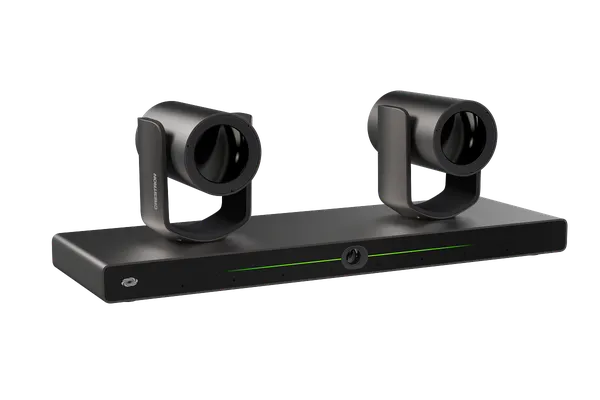

The Crestron IV-CAM-I12D is the 1 Beyond i12D, a speaker tracking system with two 4K PTZ cameras, a 4K reference camera and a microphone array that detects who is talking. It suits medium to large spaces needing close-ups of each speaker, and connects to a codec running Microsoft Teams or Zoom Rooms.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron IV-CAM-I12D
The IV-CAM-I12D pairs two 4K PTZ cameras with 12x optical zoom with a 4K reference camera that has a 110° horizontal view. Its integrated microphone array provides spatial audio detection, and visual AI moves the cameras to follow the active speaker at 5 to 25 ft (1.5 to 7.6 m), with no external system required. Group Framing, Conversation Mode and Intelligent Switching are also available, with up to 512 presets.
Video is output over HDMI at up to 4K30 and over a USB-C (USB 3.0) connection to the host at up to 4K30, with RTSP streaming as well. A single Ethernet connection handles viewing and control, and RS-232/RS-485 serial control is supported using VISCA, PELCO-D and PELCO-P. A balanced analogue audio reference input and AES67 input allow it to work with a variety of audio systems, and it serves as the primary camera for Intelligent Switching.
Crestron lists a power pack as its power source: the PW-2420RU, supplying 24 VDC at 2.5 A. An i12D wall mount bracket is included, and there are 1/4 in threaded mount holes. The unit is 500 mm wide, 193 mm high and 155 mm deep, and a lightbar shows the current camera status. Setup uses Crestron 1 Beyond Camera Manager 2 on a Windows computer.
Key features
- Two 4K PTZ cameras with 12x optical zoom, plus a 4K reference camera
- Microphone array for spatial audio detection of the active speaker
- Speaker Tracking, Group Framing and Conversation Mode
- Primary camera for Intelligent Switching
- Up to 4K30 over HDMI and USB
- Connects to a codec running Microsoft Teams or Zoom Rooms
- Up to 512 presets
- Wall mount bracket included
IV-CAM-I12D specifications
| Cameras | Two 4K PTZ cameras with 12x optical zoom plus a 4K reference camera; 1/2.8 4K Sony CMOS sensors |
|---|---|
| Field of view | PTZ 80.5° horizontal; reference 110° horizontal |
| Pan and tilt | Pan -130° to 130° at 0.2° to 90°/s; tilt -30° to 90° at 0.2° to 70°/s |
| Intelligent functions | Speaker Tracking, Group Framing, Conversation Mode, Intelligent Switching; 5 to 25 ft range; up to 512 presets |
| Video outputs | HDMI up to 4K30; USB (NV12, MJPEG) up to 4K30; RTSP |
| Connections | HDMI out; USB-C (USB 3.0) to host; RJ-45 Ethernet 1000 Mbps; RS-232/485 terminal block; balanced analogue audio reference input |
| Control | VISCA passthrough, VISCA over IP, PELCO-D, PELCO-P, UVC; AES67 input |
| Power | 24 VDC 2.5 A from the PW-2420RU power pack |
| Mounting | i12D wall mount bracket included; 1/4 in threaded mount holes |
| Dimensions | Height 193 mm (7.61 in), width 500 mm (19.69 in), depth 155 mm (6.10 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| IV-CAM-I12D-B | Moon Gray | On request |
Where the IV-CAM-I12D is used
Works with the IV-CAM-I12D
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron IV-CAM-I12D
What is the Crestron IV-CAM-I12D?
It is the Crestron 1 Beyond i12D, a speaker tracking solution with two 4K PTZ cameras, a 4K reference camera and an integrated microphone array. It detects who is speaking and automatically follows them with close-up views, using visual AI, without needing an external system.
How does the IV-CAM-I12D track speakers?
It combines spatial audio detection from its integrated microphone array with visual AI to follow the active speaker automatically using its two 4K PTZ cameras. Crestron recommends a range of 5 to 25 ft (1.5 to 7.6 m), and the camera also offers Group Framing and Conversation Mode.
Does the IV-CAM-I12D work with Microsoft Teams and Zoom?
Yes. Crestron states that it connects directly to a codec running Microsoft Teams or Zoom Rooms software. It has a USB-C (USB 3.0) connection to the host for video and control at up to 4K30, and an HDMI output at up to 4K30.
How is the IV-CAM-I12D powered?
Crestron lists a power pack as its power source: the PW-2420RU, supplying 24 VDC at 2.5 A to a 5.5 mm DC connector on the unit. The single Ethernet connection is used for viewing and control.
How is it mounted?
An i12D wall mount bracket is included, and the unit also has 1/4 in threaded mount holes. It measures 500 mm wide, 193 mm high and 155 mm deep, and a dynamic lightbar on the unit shows the current camera status.
How much is the Crestron IV-CAM-I12D?
Crestron asks its dealers to give the price of the IV-CAM-I12D directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the IV-CAM-I12D?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the IV-CAM-I12D on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the IV-CAM-I12D come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the IV-CAM-I12D develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the IV-CAM-I12D in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the IV-CAM-I12D without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
