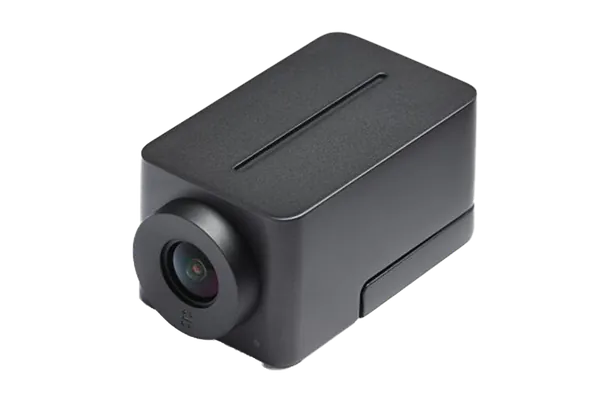

Crestron CCS-CAM-USB-F-400 Huddly IQ Collaboration Camera

Crestron part number CCS-CAM-USB-F-400

The Crestron CCS-CAM-USB-F-400 is the Huddly IQ collaboration camera, a compact USB video conferencing camera with an ultra wide 150° diagonal field of view and Full HD 1080p video. Genius Framing digital autozoom frames the people in the room automatically, and the camera has no moving parts, so it runs silently.

€123 plus VAT €151.29 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron CCS-CAM-USB-F-400 Huddly IQ Collaboration Camera

About the Crestron CCS-CAM-USB-F-400

The camera uses a 12 megapixel 1/2.3 CMOS sensor behind a six element aspherical glass lens at f/2.8, covering 150° diagonally, 120° horizontally and 90° vertically, enough to take in a whole conference room. Processing is handled by a Neural Compute Engine based on the Intel Movidius Myriad X video processing unit. Features include Genius Framing, 4x lossless digital zoom, pan and tilt, and people counting analytics.

Image processing adjusts light levels and white balance automatically, applies 3D noise reduction and flicker elimination, and corrects perspective with real-time scaling and dewarping. Auto-Flip rotates the image 180° when the camera is mounted upside down. Video leaves the camera as USB UVC 1.1 at 1080p and 30 fps over a USB 3.1 Type-C port, which also powers it (5 VDC, 900 mA).

Crestron describes it as plug and play with Crestron Flex tabletop video conferencing solutions and major computer operating systems. The aluminium unibody has an integrated hinge for attaching to a display and a 1/4-20 thread for a tripod. It measures 36 mm high, 41 mm wide and 72 mm deep and weighs 120 g, and it is covered under the Crestron standard limited warranty.

Key features

Full HD 1080p video at 30 fps
Ultra wide 150° diagonal field of view
12 MP sensor with six element aspherical glass lens
Genius Framing digital autozoom
4x lossless digital zoom, pan and tilt
People counting analytics
Auto-Flip image rotation for upside-down mounting
Single USB 3.1 Type-C connection for video and power, silent with no moving parts

CCS-CAM-USB-F-400 specifications

Sensor	12 MP 1/2.3 CMOS
Lens	Six element aspherical glass, f/2.8
Field of view	150° diagonal, 120° horizontal, 90° vertical
Video output	USB UVC 1.1, 1080p at 30 fps
Zoom and framing	4x lossless digital zoom, pan and tilt; Genius Framing autozoom
Processing	Neural Compute Engine based on Intel Movidius Myriad X VPU
Connection	USB Type-C (USB 3.1)
Power	5 VDC, 900 mA via USB
Mounting	Integrated hinge for display mounting; 1/4-20 tripod thread
Size and weight	36 x 41 x 72 mm (H x W x D); 120 g (4.2 oz); aluminium unibody

Part numbers on this page

Part number	Version	Price	Add
CCS-CAM-USB-F-400	Standard	€123 plus VAT €151.29 inc VAT

Where the CCS-CAM-USB-F-400 is used

Conference rooms where the whole table needs to be in view
Crestron Flex tabletop video conferencing systems
Rooms where the camera sits on top of the display
Meeting spaces that benefit from automatic framing of participants

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron CCS-CAM-USB-F-400

What is the Crestron CCS-CAM-USB-F-400?

It is the Huddly IQ collaboration camera sold by Crestron under part number CCS-CAM-USB-F-400. It is a compact USB camera for video conferencing that captures Full HD 1080p video across an ultra wide 150° diagonal field of view, with Genius Framing digital autozoom to frame people automatically.

What is Genius Framing on the CCS-CAM-USB-F-400?

Genius Framing is the camera's automatic lossless digital zoom. It intelligently frames the view around the people in the room. The camera also offers 4x lossless digital zoom, pan and tilt, and people counting that reports how many people are in frame.

How is the CCS-CAM-USB-F-400 connected and powered?

A single USB Type-C port (USB 3.1) carries the video, sent as USB UVC 1.1 at 1080p and 30 fps, and also supplies the camera's power of 5 VDC at 900 mA. Crestron describes it as plug and play with major computer operating systems and Crestron Flex tabletop systems.

Can the camera be mounted upside down?

Yes. Auto-Flip rotates the image 180° automatically when the camera is mounted upside down. For normal mounting there is an integrated hinge for fixing it to a display, and a 1/4-20 threaded fitting for a tripod.

How big is the CCS-CAM-USB-F-400?

It is compact: 36 mm (1.40 in) high, 41 mm (1.60 in) wide and 72 mm (2.82 in) deep, weighing 120 g (4.2 oz). The housing is an aluminium unibody, and with no moving parts the camera operates silently.

How much is the Crestron CCS-CAM-USB-F-400?

Crestron's advertised price for the CCS-CAM-USB-F-400 in Ireland is €123 plus VAT, which is €151.29 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the CCS-CAM-USB-F-400?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CCS-CAM-USB-F-400 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the CCS-CAM-USB-F-400 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CCS-CAM-USB-F-400 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the CCS-CAM-USB-F-400 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the CCS-CAM-USB-F-400 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
